three storey villa 3-02 3D-Modell

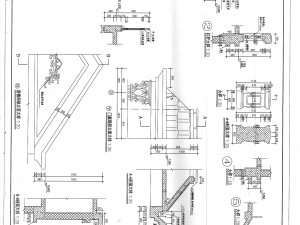

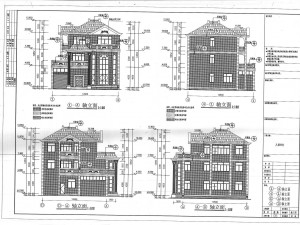

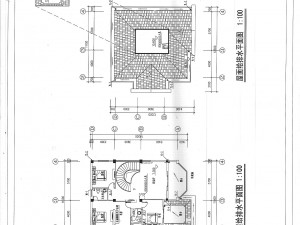

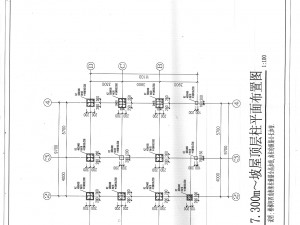

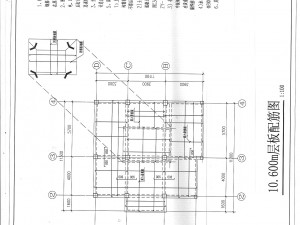

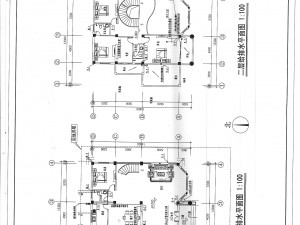

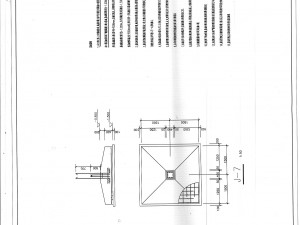

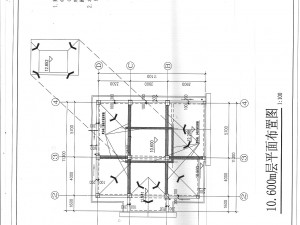

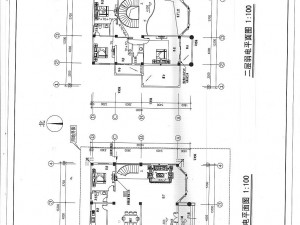

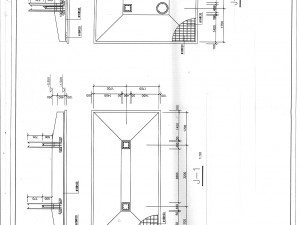

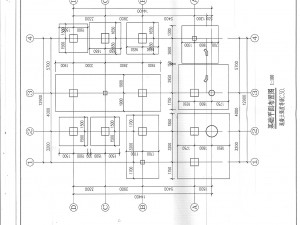

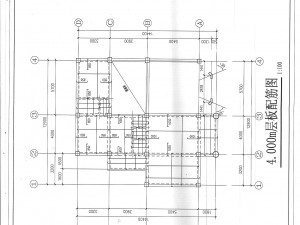

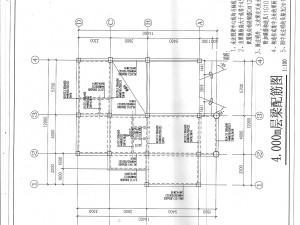

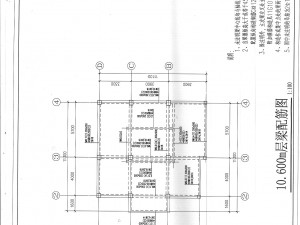

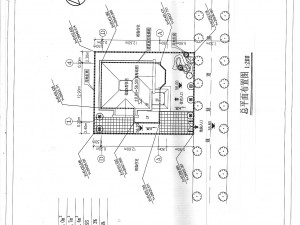

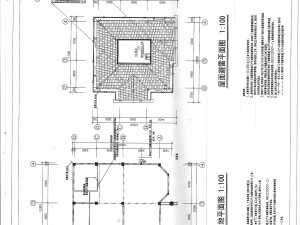

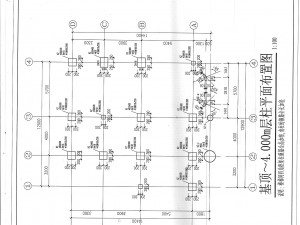

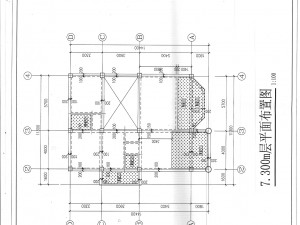

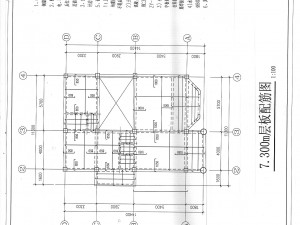

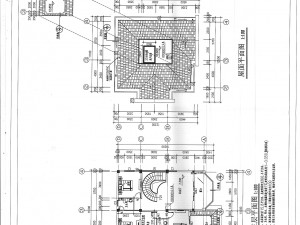

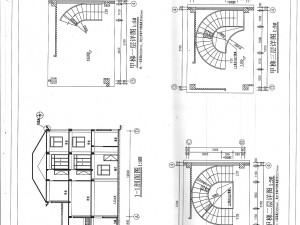

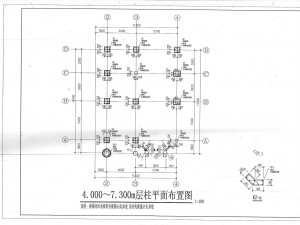

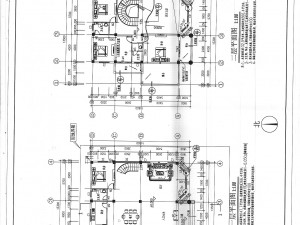

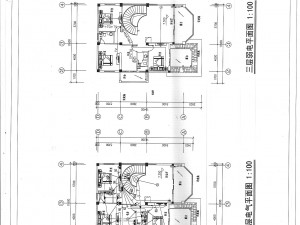

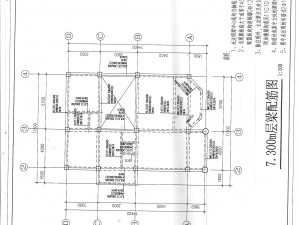

plan, elevation, section, stair, node detail, door and window detail



the unit type is a 3-storey single family villa with a land area of 396.0 square meters, a total construction area of 366.4 square meters, an area of 147.7 square meters, and a total building height of 11.1 meters. frame shear wall structure, 7 degree seismic fortification. the first floor is equipped with entrance porch, living room, bedroom, toilet, garage, dining room and kitchen; the second floor is equipped with three bedrooms, two bathrooms, large balcony, study and living room; the third floor is equipped with three bedrooms, two bathrooms, study, activity hall and two large balconies.



the appearance of the house is uneven, the sky blue wave tile is elegant, the color is bright, the lighting and ventilation is good, the room scale design is suitable, and the space utilization rate is high.



the width in front of the door is 13.3m * the depth is 14.6m Druckfertige: Nein
