हिंदीsimple 35 mm films scanner for iphone 11 3D-Druckmodell
- Verfügbare Formate: 3DS MAX all ver.: 3ds 116.00 kbCollada: dae 225.07 kbWavefront OBJ: obj 120.25 kbAgisoft Photoscan: ply 117.61 kbStereolithography: stl 222.36 kb
- Sammlung:No
- Breite in Zentimeter:17
- Einheiten in Zoll:6.7
- Breite in Millimeter:170
- Höhe in Millimeter:68
- Tiefe in Millimeter:100
- Druckfertige:No
- 3D-Scan:No
- Erwachsene:No
- PBR:No
- Betrachter:2728
- Datum: 2022-01-12
- Artikel-ID:382192
- Bewertung:

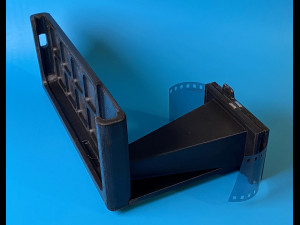

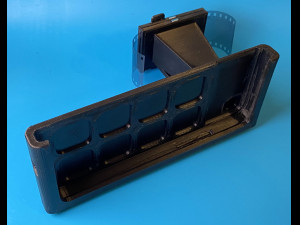

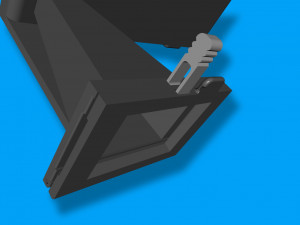

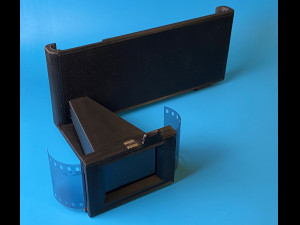

3d model of the cradle for scanning 35 mm film (frame 36x24 mm) with iphone 11 (not pro).
this technology allows obtaining images for subsequent processing with an optical resolution of at least 2200x3300 px in comparison with a non-professional flatbed scanner ~ 560x820 px (600 ppi).
model notes:
- the model requires gluing.
- it is recommended to matte the inner surface of the tube to eliminate glare.
- illumination - an external light source with a diffuser.
please indicate in the comments that you are interested in supporting other phone models.
additional elements:
- neodymium magnet 6x4x2 mm - 2 pcs.
- metal axis d = 1.2 ... 1.5 mm, l = 12 mm - 2 pcs.
if you do not have the required magnets, print and use the clip to lock the lid.
parts:
1. case
2. tube
3. cover
4. clip (optional)
3d printing settings
- nozzle - 0.4 mm,
- filament - lightproof abs +,
- infill - 20%,
- layer thickness - 0.16mm or less. Druckfertige: Nein
Mehr lesenthis technology allows obtaining images for subsequent processing with an optical resolution of at least 2200x3300 px in comparison with a non-professional flatbed scanner ~ 560x820 px (600 ppi).
model notes:
- the model requires gluing.
- it is recommended to matte the inner surface of the tube to eliminate glare.
- illumination - an external light source with a diffuser.
please indicate in the comments that you are interested in supporting other phone models.
additional elements:
- neodymium magnet 6x4x2 mm - 2 pcs.
- metal axis d = 1.2 ... 1.5 mm, l = 12 mm - 2 pcs.
if you do not have the required magnets, print and use the clip to lock the lid.
parts:
1. case
2. tube
3. cover
4. clip (optional)
3d printing settings
- nozzle - 0.4 mm,
- filament - lightproof abs +,
- infill - 20%,
- layer thickness - 0.16mm or less. Druckfertige: Nein
Sie brauchen mehr Formate?
Falls Sie ein anderes Format benötigen, eröffnen Sie bitte ein neues Support-Ticket und fragen Sie danach. Wir können 3D-Modelle in folgende Formate konvertieren: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Wir konvertieren keine 3D-Szenen und Formate wie .step, .iges, .stp, .sldprt usw!
Falls Sie ein anderes Format benötigen, eröffnen Sie bitte ein neues Support-Ticket und fragen Sie danach. Wir können 3D-Modelle in folgende Formate konvertieren: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Wir konvertieren keine 3D-Szenen und Formate wie .step, .iges, .stp, .sldprt usw!
Download simple 35 mm films scanner for iphone 11 3D-Druckmodell 3ds dae obj ply stl Von MBTL.Studio
scanner film tape iphone case photography 35mm digitizer cradle iphone11Es gibt keine Kommentare zu diesem Artikel.
