Mold for diecast military tire 2 Scale 1 to 10 and 1 to 14 and 1 to 25 3D-Druckmodell

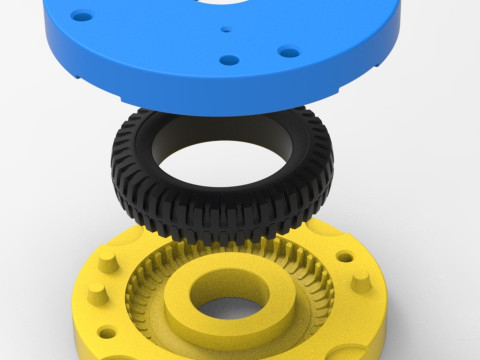

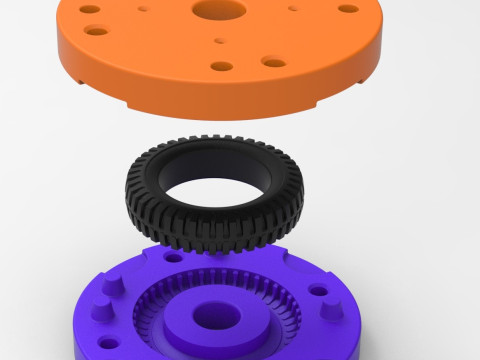

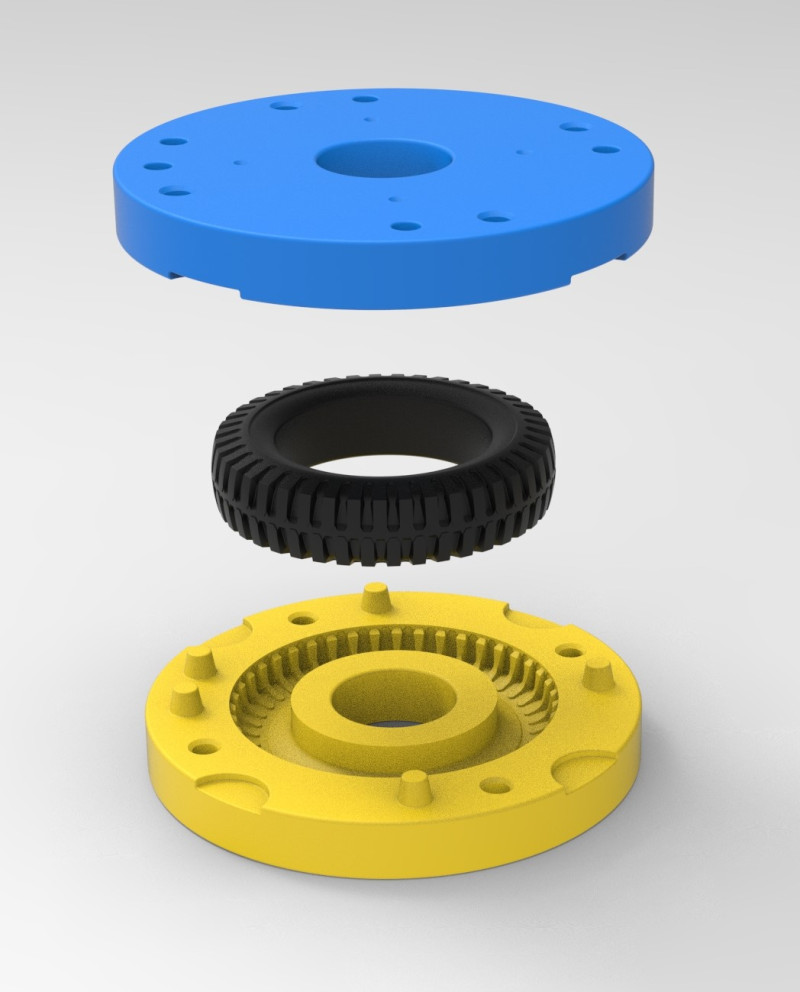

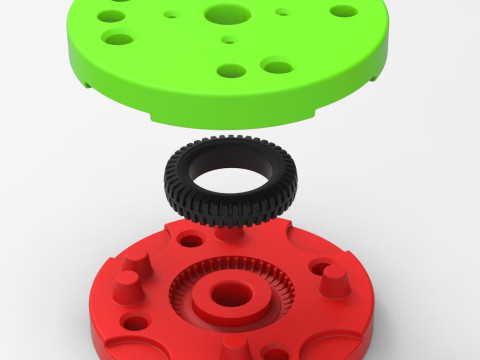

The mold is intended for the tire manufacture from silicone or similar flexible material in scale 1:10, 1:14, 1:25. It consists of 2 parts: top and bottom part. Each part can be 3D printed without supports.

Mold dimensions 1:10:

- diameter – 120 mm

- height – 30 mm

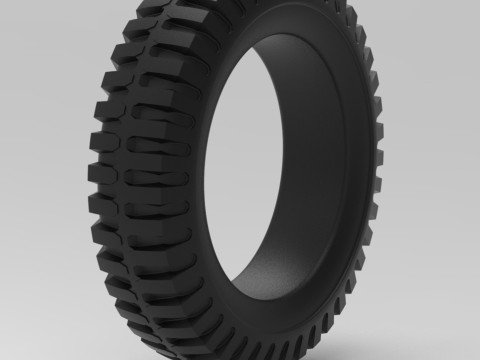

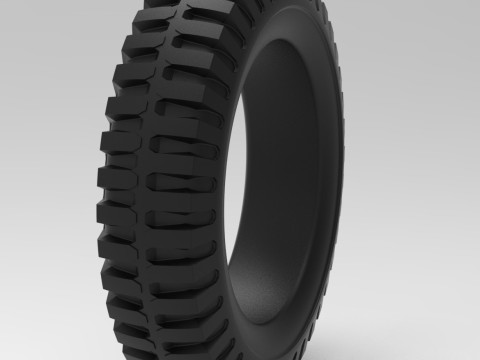

Tire dimensions 1:10:

-         outer diameter – 80 mm

-         overall width – 20 mm

-         inner diameter – 50 mm

Mold dimensions 1:14:

- diameter – 97 mm

- height – 24.5 mm

Tire dimensions 1:14:

-         outer diameter – 57 mm

-         overall width – 14.5 mm

-         inner diameter – 37.7 mm

Mold dimensions 1:25:

- diameter – 72 mm

- height – 18 mm

Tire dimensions 1:25:

-         outer diameter – 32 mm

-         overall width – 8 mm

-         inner diameter – 20 mm

If you want a different wheel size, simply scale the mold.

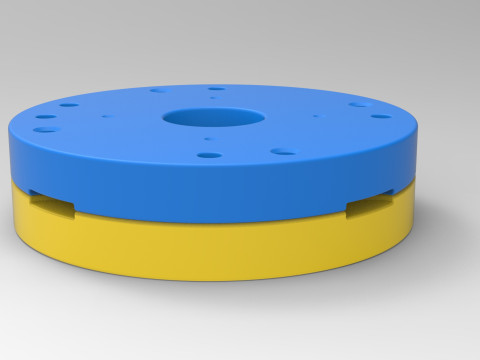

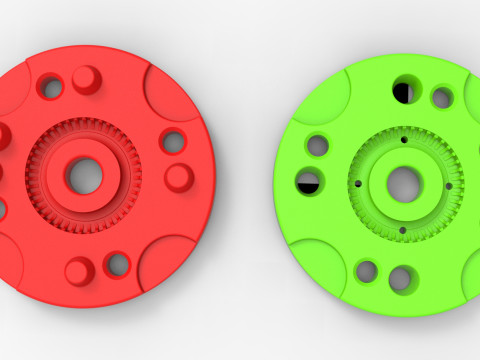

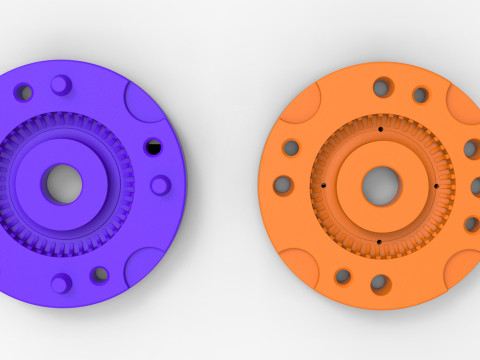

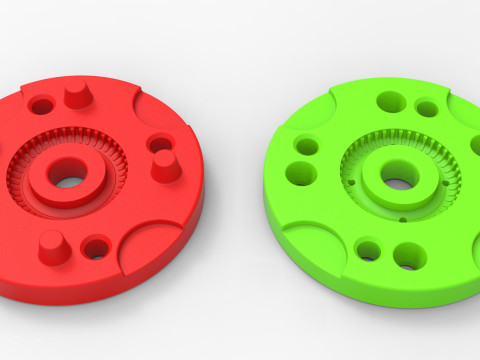

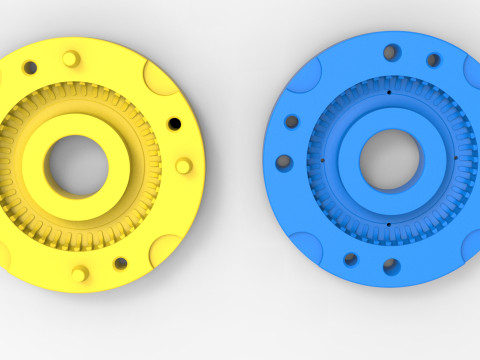

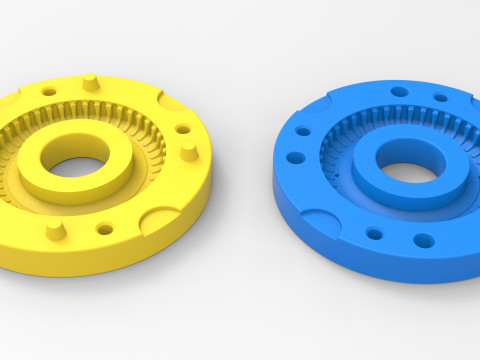

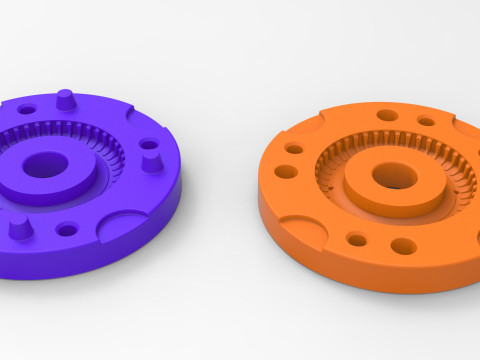

The bottom mold part has 5 special bosses and Top mold part has 5 special holes to guide mold parts in the closed state. Also, there are 4 slots for better opening with a screwdriver or similar instrument.

In the Top mold part are 4 small holes for material injection.

Both mold parts have 4 holes with diameter 6 mm for bolting it in closed state.

Note! Only the mold! This is not a tire!
