GBU-10A Paveway I - Scale 1-10 3D-Druckmodell

Specification:
- Brand: AMS
- Scale: 1/10
- Type of product: Arms and weapons
- Recommended Use: Scale Model

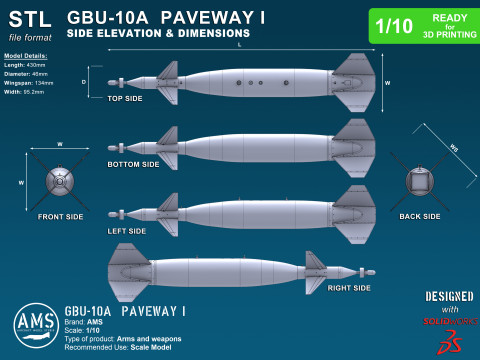

Bomb Model Dimension:
- Length: 430mm
- Diameter: 46mm
- Wingspan: 134mm
- Width: 95.2mm

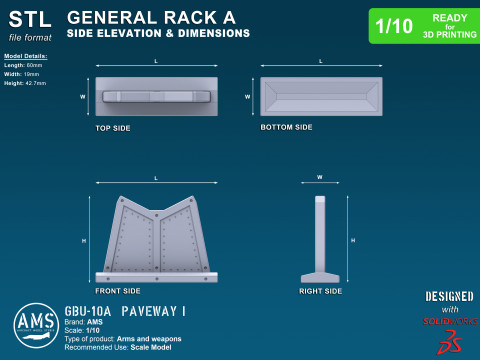

Rack Model Dimension :
- Length: 60mm
- Width: 20mm
- Height: 42.7mm

Note:
- High Resolution STL File.
- STL File Ready for 3D Printing.
- Types of 3D Printing Technology to Use:
    LCD - DLP - SLA
- Appropriate Resolution of the 3D Printer:
    2K To High
- The Best Type of Resin to Use:
    Basic Resin Grey (Standard)
- Details are considered appropriate
    to the scale of the model.

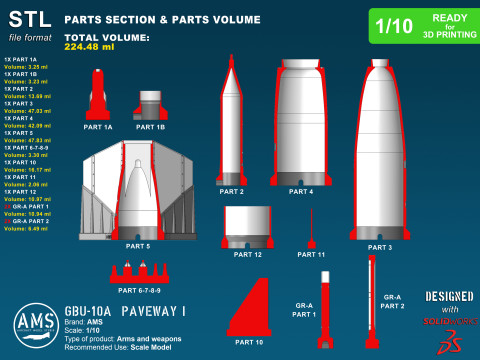

Product files:

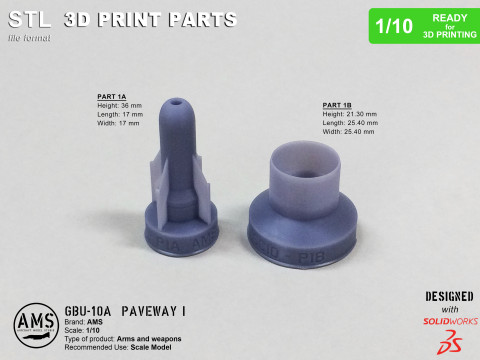

- GBU-10A Paveway I-P1A-Sc10. (STL)
- GBU-10A Paveway I-P1B-Sc10. (STL)
- GBU-10A Paveway I-P2-Sc10. (STL)
- GBU-10A Paveway I-P3-Sc10. (STL)
- GBU-10A Paveway I-P4-Sc10. (STL)
- GBU-10A Paveway I-P5-Sc10. (STL)

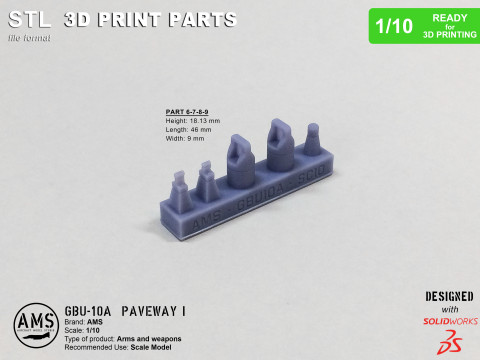

- GBU-10A Paveway I-P6.P7.P8.P9-Sc10. (STL)
- GBU-10A Paveway I-P10-Sc10. (STL)

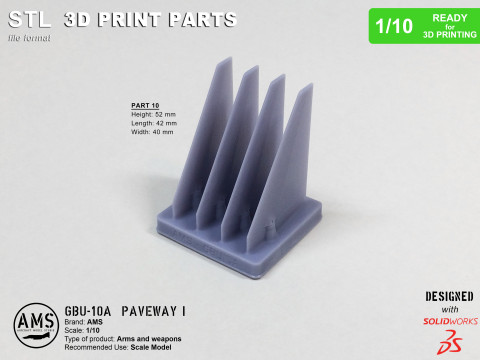

- GBU-10A Paveway I-P11-Sc10. (STL)

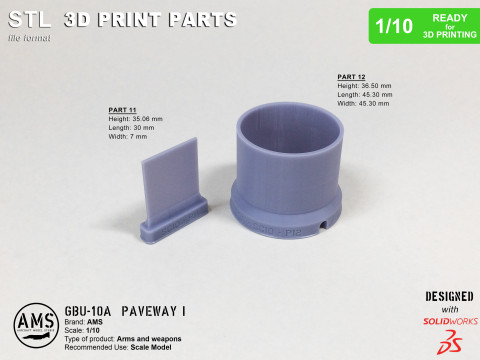

- GBU-10A Paveway I-P12-Sc10. (STL)

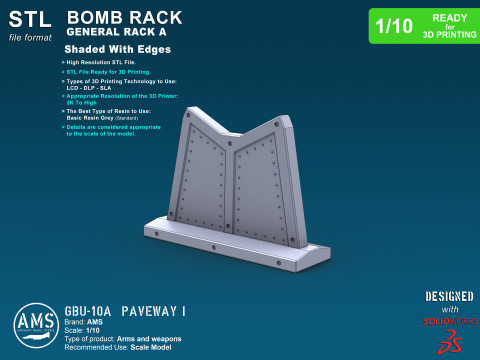

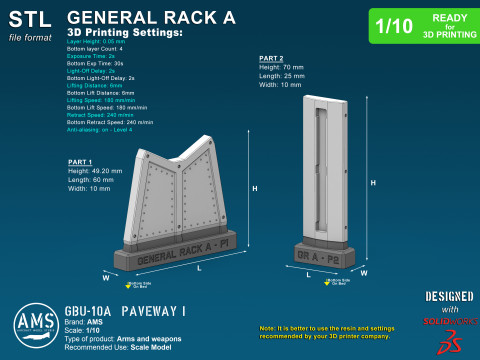

- General Rack A-P1-Sc10. (STL)
- General Rack A-P2-Sc10. (STL)

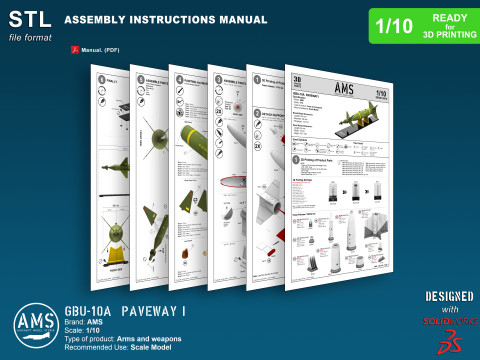

- Assembly Instructions Manual. (PDF)

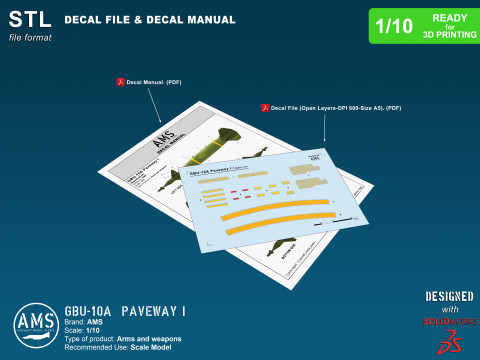

- Decal File (Open Layers-DPI 600-Size A5). (PDF)
- Decal Manual. (PDF)

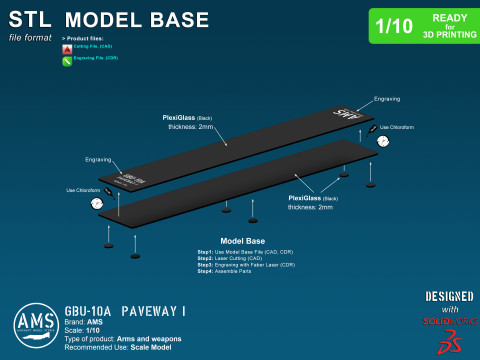

- Cutting File. (CAD)
- Engraving File. (CDR)

Description:
The GBU-10 A/B Paveway I is a laser guided bomb (LGB).

The GBU-10 Paveway I is an American Paveway-series laser-guided bomb, based on the Mk 84 general-purpose bomb, but with laser seeker and wings for guidance.Introduced into service c.1976. Used by USAF, US Navy, US Marine Corps, Royal Australian Air Force and various NATO air forces.

The GBU-10 A/B Paveway I is intended for precision bombing against non-hardened targets. It consists of a
bolt-on gimballed seeker head and Computer Control Group (CCG) and a stabilizing tail airfoil assembly attached to a
conventional Mk84 gravity bomb. This converts the Mk84 into a laser-guided weapon that homes in on a reflected
laser beam transmitted from a ground or air-based laser designator. A Paveway I-series bomb steers to the target using
"bang-bang" guidance, where the control surfaces are always fully deflected. This results in a relatively inefficient flight
path. Consequentially, the Paveway I-series has limited standoff capabilities. Its sensor also was limited by mist and
fog.

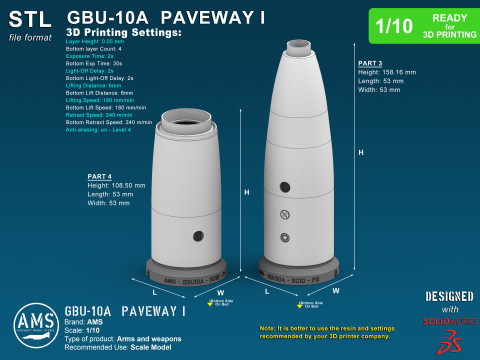

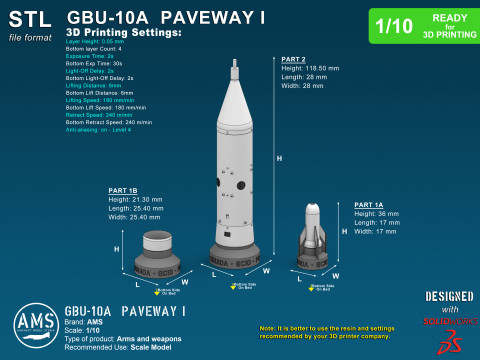

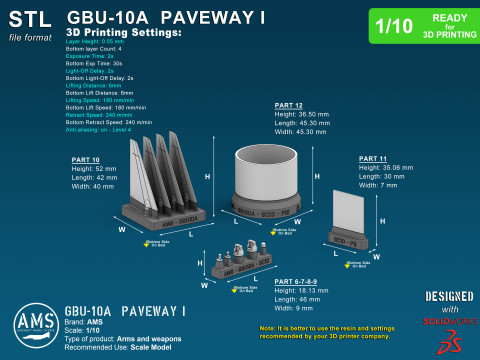

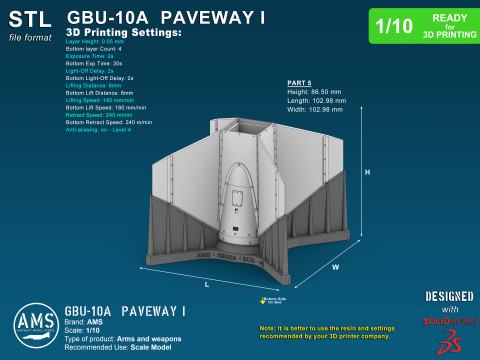

3D printing settings

Types of 3D Printing Technology: LCD
- Layer Height: 0.05 mm
- Bottom layer Count: 4
- Exposure Time: 2s
- Bottom Exp Time: 30s
- Light-Off Delay: 2s
- Bottom Light-Off Delay: 2s
- Lifting Distance: 6mm
- Bottom Lift Distance: 6mm
- Lifting Speed: 180 mm/min
- Bottom Lift Speed: 180 mm/min
- Retract Speed: 240 m/min
- Bottom Retract Speed: 240 m/min
- Anti-aliasing: on - Level 4

Note:
It is better to use the resin and settings recommended by your 3D printer company.
