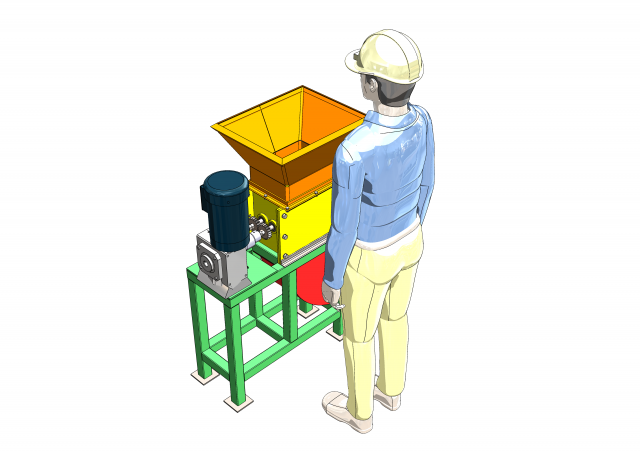

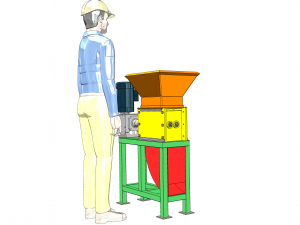

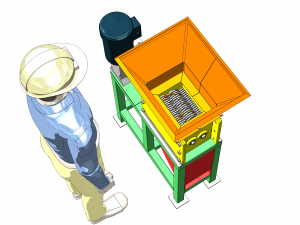

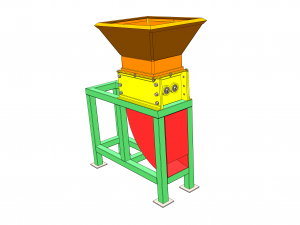

DRAWINGS TO MAKE HOMEMADE PLASTIC SHREDDER.

By definition, a plastic shredder is a machine that processes a material in such a way as to produce pieces of a size smaller than the original size. It is a device designed to reduce the size of objects by using force to break and reduce the object into a series of smaller or more compact pieces of volume.

With the purchase of this product I will deliver printable digital plans in high quality PDF format with all the views, perspectives, details and measurements necessary for its construction.

At the end of the purchase you write me your email through the Mercado Libre chat to send you the files and my data to advise you with any questions you have with the use of the plans.

Includes:

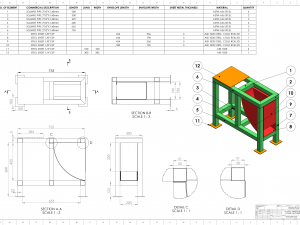

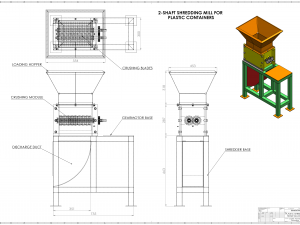

- Assembly plan with 2D orthogonal views and 3D views with all details, bill of materials of commercial elements and elements to be built.

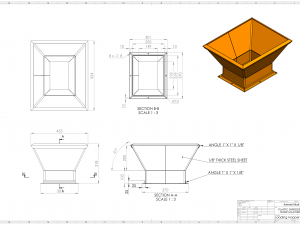

- Dimensioned exploded drawings with dimensions for construction.

MEASUREMENTS:
45 cm wide x 74 cm long x 127 cm high.

FEATURES:
It is a useful tool for crushing plastic bottles which once crushed, the plastic is sorted, cleaned and goes to the transformation process (Extrusion, Injection, Molding, Compression) to generate, among other things: candles, synthetic textiles, industrial and waste bags, tubes, boxes and even products for use in agriculture.

OPERATION:

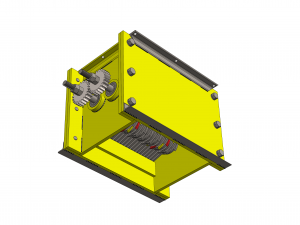

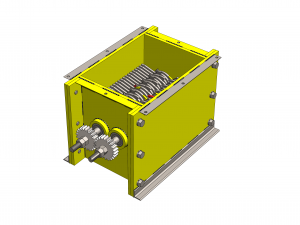

Two rotors incorporate several blades between them that, thanks to the power and speed of rotation, cut and crush the plastic parts. Afterwards, it p***** through a sieve or a screen that only allows the pieces of a desired size to pass through. Finally, it p***** through a chute where it falls into a product storage container. Druckfertige: Nein
