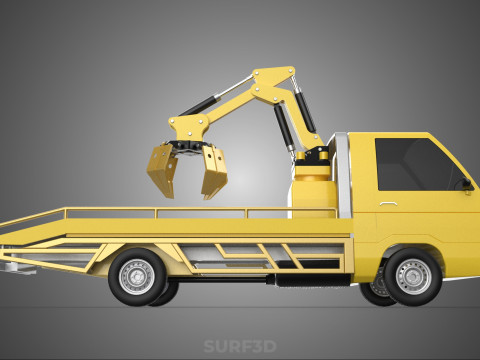

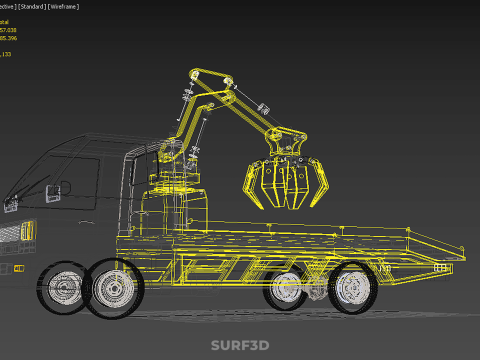

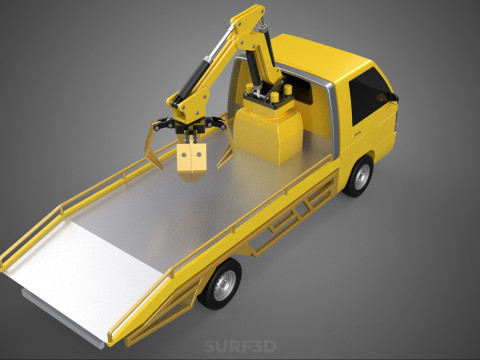

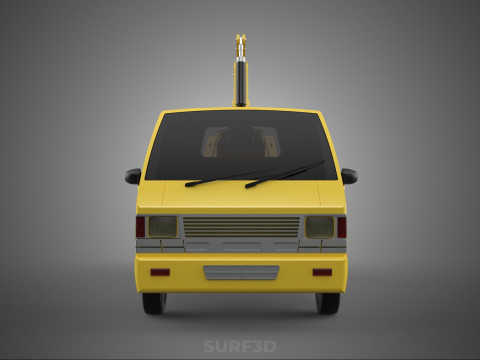

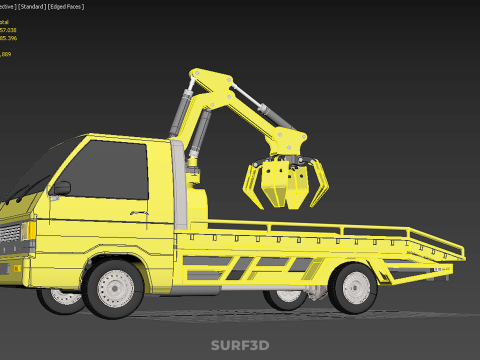

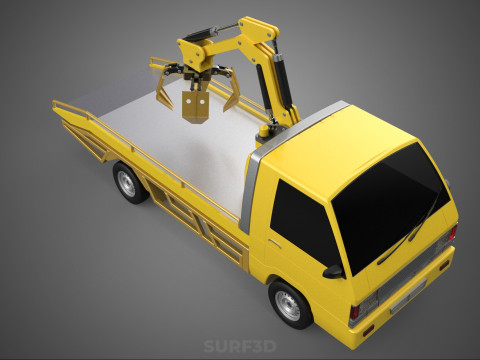

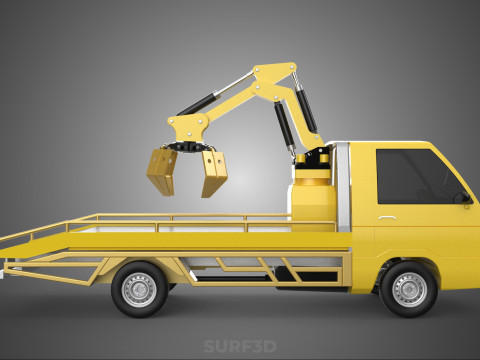

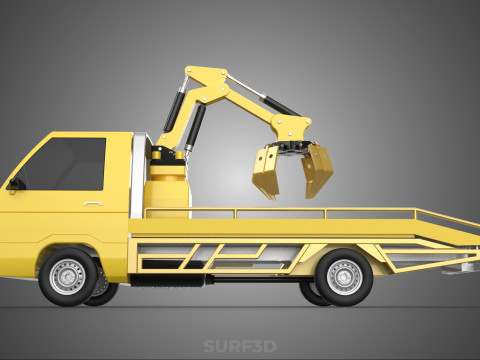

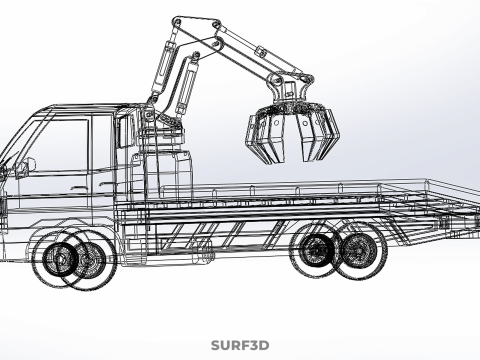

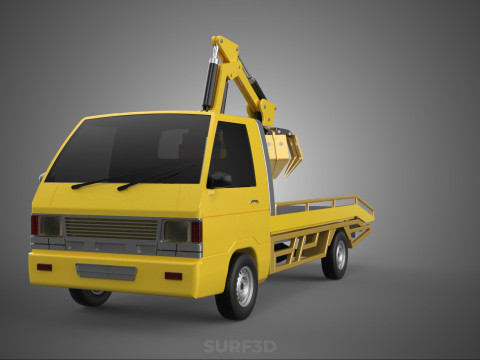

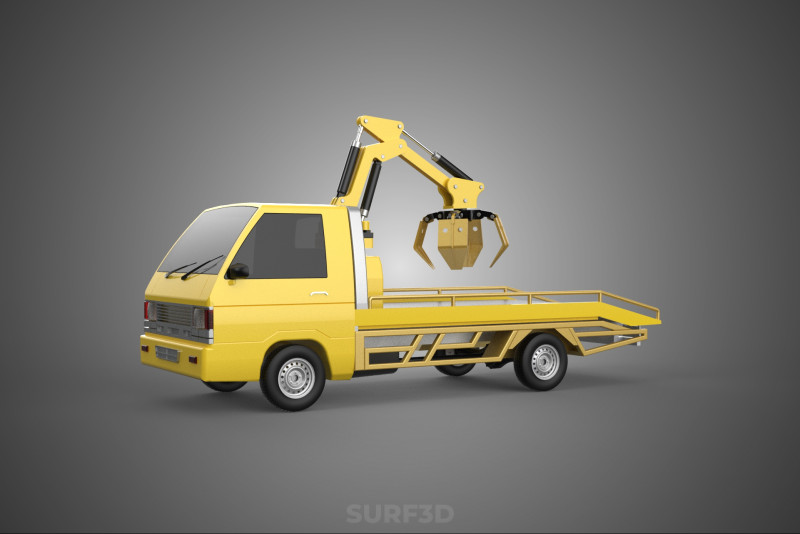

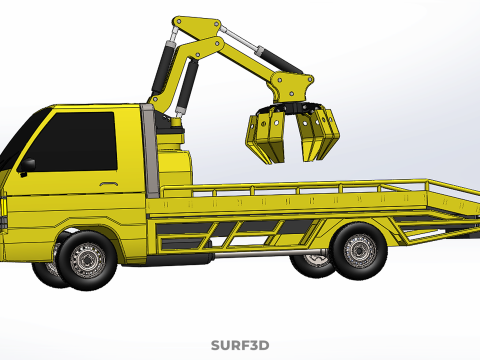

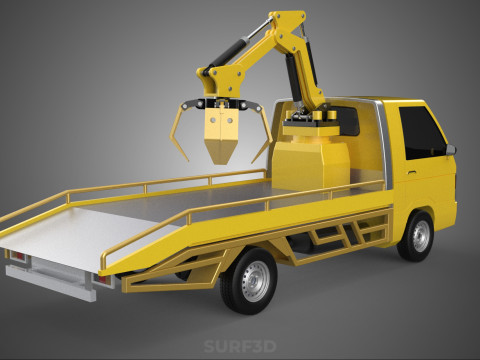

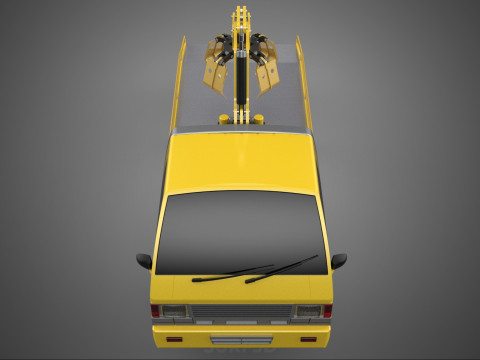

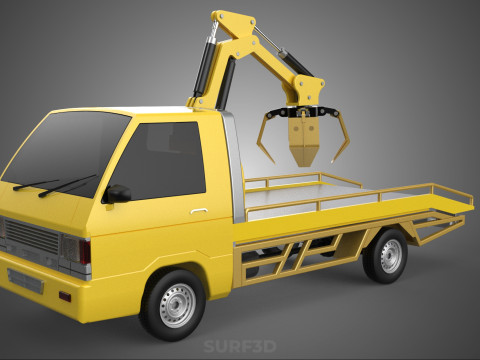

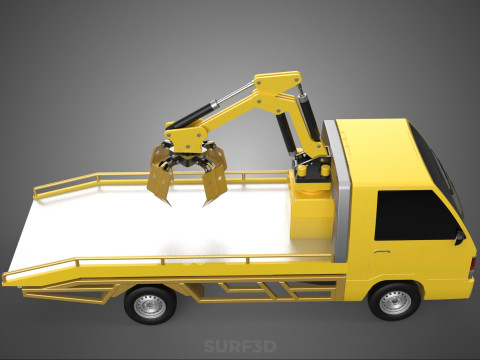

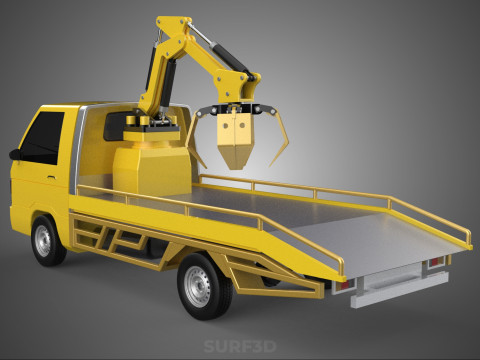

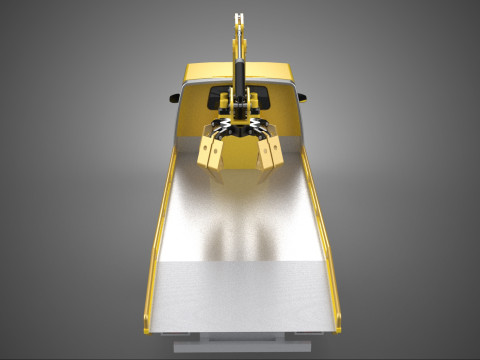

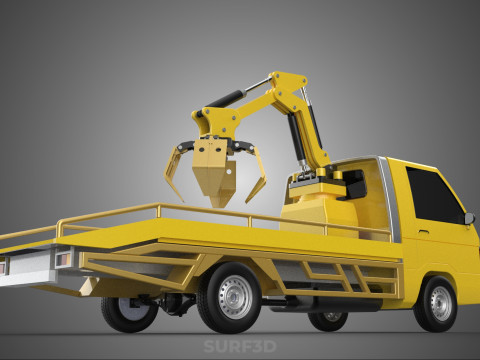

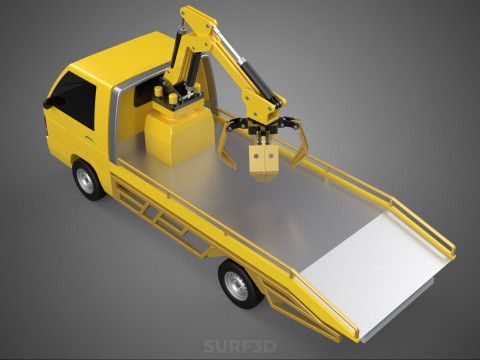

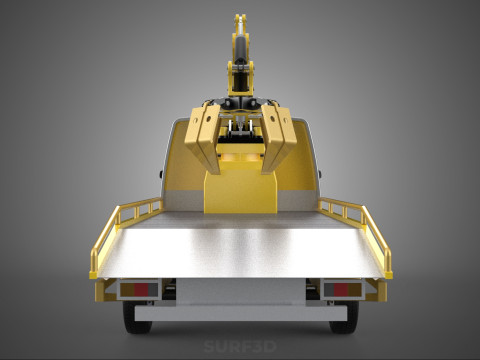

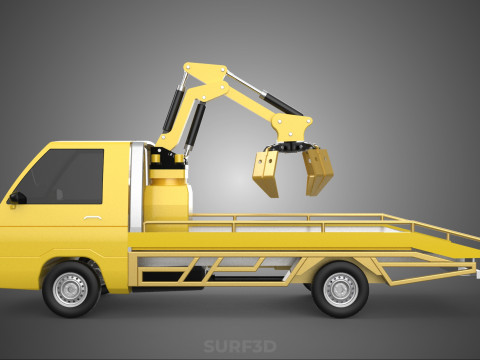

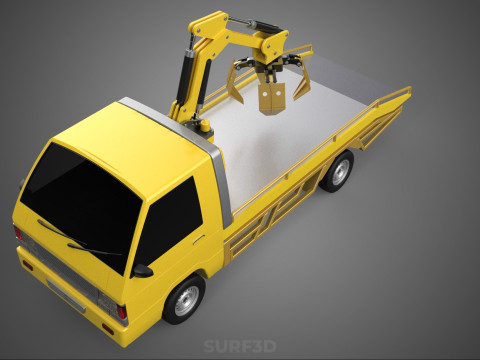

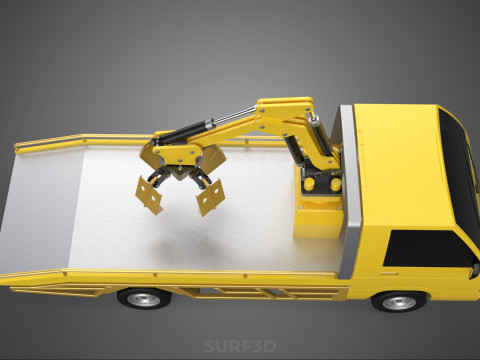

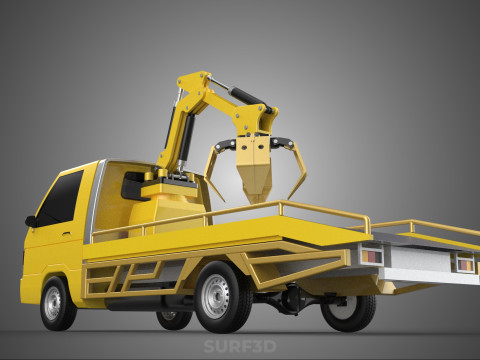

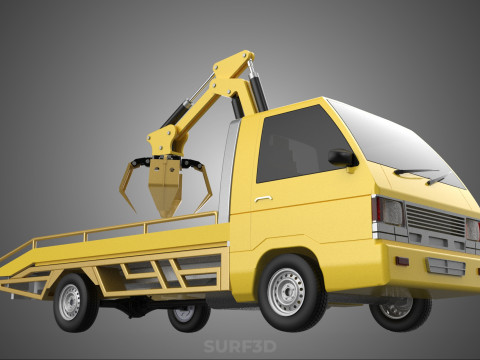

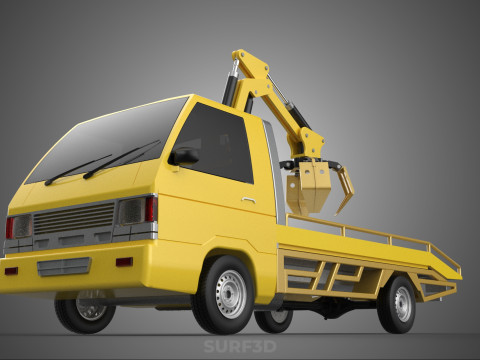

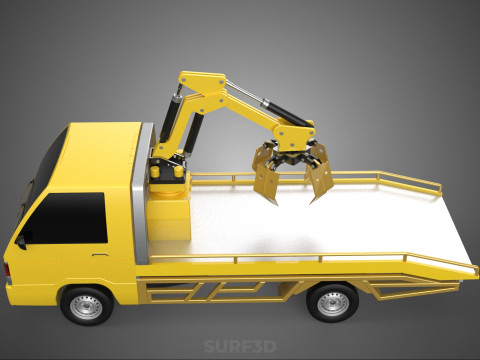

CAR PICK UP TRUCK WOOD LOG TREE LOADER GRAB CRANE LIFTER GRABBER 3D-Modell

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
•    - FBX (.fbx) – Standard format for most 3D software and pipelines
•    - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
•    - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
•    - STEP (.step, .stp) – CAD format using NURBS surfaces
•    - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
•    - SAT (.sat) – ACIS solid model format (NURBS)
•    - DAE (.dae) – Collada format for 3D applications and animations
•    - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
•    - 3DS (.3ds) – Legacy format with broad software support
•    - 3ds Max (.max) – Provided for 3ds Max users
•    - Blender (.blend) – Provided for Blender users
•    - SketchUp (.skp) – Compatible with all SketchUp versions
•    - AutoCAD (.dwg) – Suitable for technical and architectural workflows
•    - Rhino (.3dm) – Provided for Rhino users

Model Info
•    - All files are checked and tested for integrity and correct content
•    - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
•    •    - Scene setup and mesh structure may vary depending on model complexity
•    - Rendered using Luxion KeyShot
•    - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
## Vehicle-Mounted Grapple Loader for Timber Handling

A **vehicle-mounted grapple loader for timber handling** is a specialized piece of heavy equipment designed for the lifting, moving, sorting, and loading of wood logs, trees, branches, and other forestry materials. It consists primarily of a hydraulically operated crane or boom system equipped with a grapple (also known as a grab or grabber) as its end-effector, mounted onto the chassis of a road-going vehicle such as a utility vehicle, pickup truck, or more commonly, a medium or heavy-duty truck.

This equipment consolidates mobility with the functionality of a stationary log loader or material handler, enabling efficient operations in distributed locations such as logging sites, roadside collection points, timber yards, sawmills, or even urban areas for arboriculture waste management.

**Nomenclature:** The terminology used in the title reflects various aspects of the equipment's design and function. "CAR/PICK UP/TRUCK" specifies the type of mobile platform. "WOOD LOG TREE" indicates the material handled. "LOADER" denotes its primary function of placing material onto something (typically the vehicle itself or another transport). "GRAB/GRABBER" refers to the grasping tool at the end of the boom. "CRANE/LIFTER" describes the articulated arm mechanism used for lifting and manipulating the load through space. Common industry terms include "Log Loader Crane," "Truck-Mounted Log Loader," "Grapple Truck," "Timber Crane," "Forestry Loader," or "Wood Handler."

**Components and Functionality:**
1.  **Vehicle Platform:** Provides mobility and a stable base. The size and type of vehicle chassis are selected based on the required load capacity, mobility needs (on-road vs. off-road), and lifting capacity of the mounted loader. Trucks are most common due to their robust frames and payload capacity.
2.  **Base Mount:** A structure fixed to the vehicle chassis, providing a secure pivot point and support for the loader assembly. This often includes a slewing mechanism (rotation unit) allowing the boom to rotate horizontally.
3.  **Boom System:** Typically an articulated hydraulic crane with multiple sections (main boom, outer boom, and often an extension/telescope) connected by pivots. Hydraulic cylinders control the movement of each section, allowing for vertical lifting, horizontal reach, and precise positioning of the end-effector.
4.  **Hydraulic System:** The power source for the loader's movements. It consists of a hydraulic pump (driven by the vehicle's engine or an auxiliary power unit), control valves, hydraulic cylinders, hoses, and a reservoir.
5.  **Grapple (Grab/Grabber):** The specialized attachment at the end of the boom. Log grapples typically consist of two or more jaws or tines designed to securely grasp one or multiple logs simultaneously. Different grapple designs exist for varying materials or tasks (e.g., sorting grapples, pulpwood grapples).
6.  **Control System:** Allows the operator to manipulate the boom and grapple. This can range from manual hydraulic levers to electronic joysticks, often located in an operator's seat mounted on the vehicle frame, within the truck cab, or via a remote control.
7.  **Stabilizers (Outriggers):** Essential for ensuring stability during lifting operations. These are extendable hydraulic legs that are deployed from the vehicle frame to provide a wider and more secure base, counteracting the tipping forces generated by lifting heavy loads at reach.

**Applications:**
Vehicle-mounted grapple loaders are widely used in:
*   **Forestry and Logging:** Loading felled trees or logs onto transport trucks at the stump or roadside.
*   **Timber Yards and Sawmills:** Unloading logs, sorting timber by size or species, feeding processing machinery (e.g., chippers, debarkers).
*   **Biomass Production:** Handling brush, logging residue, and other woody biomass for transport.
*   **Arboriculture and Land Clearing:** Removing and loading cut trees and branches.
*   **Utility Work:** Managing vegetation along power lines or roadsides.

The versatility provided by mounting the loader on a vehicle makes it suitable for operations requiring mobility and self-loading capabilities.

KEYWORDS: Log loader, Grapple loader, Timber loader, Truck-mounted loader, Vehicle-mounted loader, Forestry equipment, Logging crane, Hydraulic crane, Material handler, Wood handler, Timber handling, Grapple, Grab, Crane, Lifter, Boom, Outriggers, Stabilizers, Hydraulic system, Wood logs, Trees, Pulpwood, Biomass, Forestry, Logging, Sawmill, Timber yard, Loader truck, Grapple truck.
